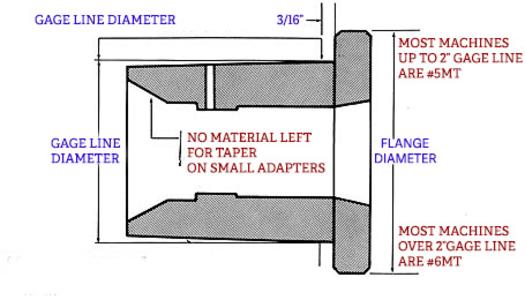

MOST POPULAR TAPERS ARE # 5MT AND #6MT
NO. G.L. MT TAPER
54 2.265 6
106 2.274 6
38 2.290 6
48 2.305 6
49 2.322 6
133 2.345 6
59 2.355 6
74 2.385 6
117 2.408 6
50 2.428 6
111 2.470 6
115 2.480 6
35 2.490 6
26 2.494 6
58 2.500 6
69 3.320 6
108 3.385 6
JARNO #3 M.T.
13 1.496
10 1.500
28 1.625
53 1.625
5 1.633
22 1.633
110 1.690
21 1.785
42 2.155
52 2.250
63 2.995
64 3.142
#4 MORSE TAPER
107 1.490 4
51 1.510 4
2 1.515 4
125 1.515 4
6 1.540 4
105 1.555 4
118 1.570 4
44 1.595 4
30 1.625 4
12 1.750 4
43 1.995 4
112 2.240 4
124 2.250 4
68 2.360 4
56 2.410 4
112 2.490 4
126 2.497 4
121 2.502 4
109 3.210 4
AMERICAN STANDARD
8 2.0000 A.S
123 2.225 A.S.
4 2.250 A.S.
45 2.385 A.S.
60 2.500 A.S.
61 3.500 A.S.
BROWN AND SHARPE B & S 11 - 12 -13
18 1.530
24 1.660
67 1.795
27 2.163
LOGAN .840
7 1.625
66 1.780
16 2.000
For collet adapters please measure dimension "G" in spec sheet below.
COLLET ADAPTERS
