| DIAMETER RANGE OF MACHINABLE COLLET(INCHES) | 2" LENGTH |
| 1/2" to 2 15/16" | JL-3 |
| 1/2" to 3 15/16" | JL-4 |
| 1/2" to 4 15/16" | JL-5 |
DRAW BOLT
LOCK SCREW
Holds linear dimensions
Collet will not push out or pull in
Conventional draw bar movement with the spindle in motion
Expanding arbor permits changing parts without stopping the machine

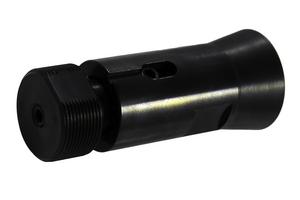

Pictured: IEJ-5C ADAPTER
(BODY AND PLUNGER PICURED )
**CAN BE SOLD SEPARATELY***
J-14 STUD BOLT
| DIAMETER RANGE OF MACHINABLE COLLET (inches) | 5/8" LENGTH | 1" LENGTH | 1-3/4" LENGTH |
| 5/16" to 9/16" | J-14 | ||
| 1/2" to 1" | J-1 | JL-1 | |
| 1/2" to 1 1/2" | J-112 | JL-112 | |
| 1/2" to 2" | J-2 | JL-2 | |
| 1/2" to 2 1/2" | J-212 | JL-212 | |
| 1/2" to 2 15/16" | J-3 | ||
| 1/2" to 3 15/16" | J-4 | ||
| 1/2" to 4 15/16" | J-5 | ||
SHORT ALLEN
Pictured : J-14
SPARE PARTS LIST
Draw Bolts (Except J-14) (j-31/4" Long, JL-4" Long
Short Allen or Lock Screw
IEJ-5C BODY
IEJ-5C PLUNGER
J-14 Stud Bolt
J-14 Allen Bolt
5-C INTERNAL EXPANDING COLLETS
5-C INTERNAL EXPANDING COLLETS
